Learn MoreSite Staking and Construction Layout for Texas Earthwork Contractors
Lone Star Layouts provides professional construction staking and layout services across Texas. We work from your design files and put the plan on the ground so your crew can build from it. We put the design on the ground. Property lines, building corners, offset stakes and grade stakes. Your crew builds from what we set.
Backed by Stone River Excavation, 11 years Texas earthwork experience
10+ years hands-on BIM, modeling, and layout experience
Trimble, Topcon, Leica and Civil 3D certified
The problem
Wrong Stakes Mean Rework. Rework Means Lost Time and a GC Who Remembers It.
Construction layout errors compound quickly. A building corner set two feet off means a foundation poured in the wrong place. A grade stake set to the wrong elevation means a pad cut too deep or not deep enough. By the time the error is visible, concrete may already be poured or dirt already moved.
Most layout errors aren't caught by the contractor. They're caught by the inspector or the GC. At that point the conversation is about who pays for the correction, not who made the mistake.
Accurate layout from the start eliminates that conversation entirely.
Our solution
Schedule My Site Staking
Professional Layout That Gives Your Crew a Clean Starting Point

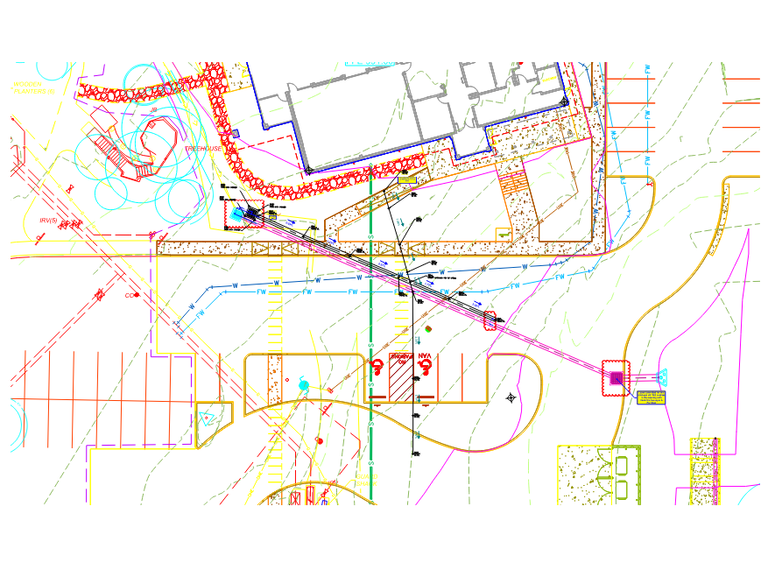

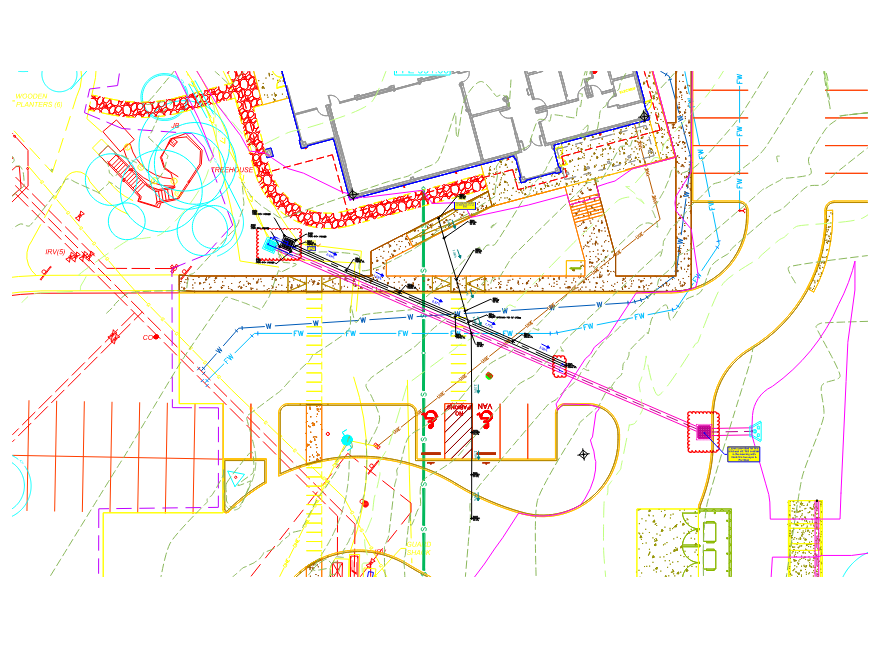

We work from your civil drawings and design files to set construction stakes with GPS and total station accuracy. Property lines, building corners, offset hubs, centerlines, cut and fill stakes, reference points. Whatever your project requires on the ground, we set it.
Our field crews are available across Houston, DFW, Rio Grande Valley and Corpus Christi. We schedule around your mobilization so stakes are in the ground when your crew arrives, not a day later.
What's Included
What You Get with Every Site Staking Engagement
Property Line and Boundary Staking
We locate and stake property corners and boundary lines from your legal description and survey records. Stakes are set with GPS accuracy and flagged clearly for your crew.
Building Corner and Offset Layout
Building corners are set from your architectural or civil drawings. We set both the corner point and an offset hub so construction activity doesn't disturb the layout point. Your foundation crew works from what we set.
Grade Stakes and Cut/Fill References
Cut stakes, fill stakes, blue tops and finish grade references set to your design elevations. Your equipment operators and grade checkers have the elevation references they need to run the grade without constant re-verification.
Centerline and Alignment Staking
For road grading, drainage channels and utility corridors, we stake the centerline and horizontal alignment from your design files. Offset stakes protect the alignment through earthwork activity.
Control Points and Benchmarks
We establish on-site control points and temporary benchmarks tied to the project datum. Your crew and subcontractors have stable reference points for the duration of the job.
Stake Documentation
We provide a staking report documenting set points, elevations and any field conditions that affected layout. If your GC asks for a layout record, you have it.
Process
How a Site Staking Project Works
Step 1
Send Us Your Design Files and Schedule
Share your civil drawings, site plan and any existing survey data. Tell us your mobilization date and which stake types you need. The more lead time you give us, the more flexibility we have on scheduling your crew.
Step 2
We Review and Confirm Scope
We review your files, confirm the layout scope and provide a quote. We'll flag any design information gaps that could affect layout accuracy before we schedule the field crew. Most quotes are returned within one business day.
Step 3
We Stake the Site

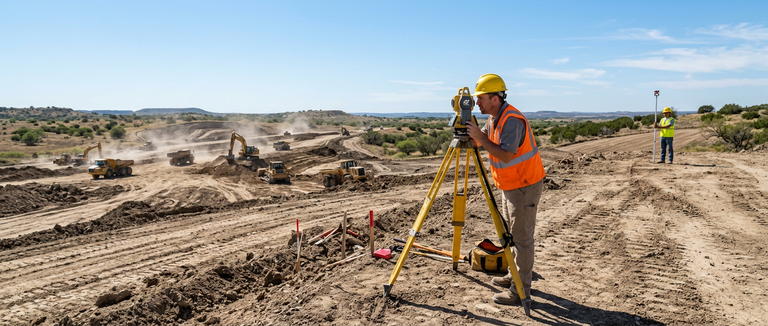

Our field crew sets stakes to your design geometry using GPS and total station equipment. Stakes are flagged, labeled and documented. Offset hubs are set where construction activity would disturb the primary points. We notify you when staking is complete.
Step 4
Your Crew Builds from What We Set
Stakes are in. Your crew has what they need to start. We provide a staking report documenting the set points. If any stakes are disturbed before the work is complete, call us and we'll schedule a return visit.
Service areas
We Work Across Texas. And Anywhere a File Can Travel.
Our remote services go where the project is. Our field crews cover the major earthwork corridors across Texas.
Related Services
Often Paired with Site Staking
As-Built Surveys
We document what was actually built. GPS-accurate, formatted to your GC's requirements, delivered on your schedule.
Learn More

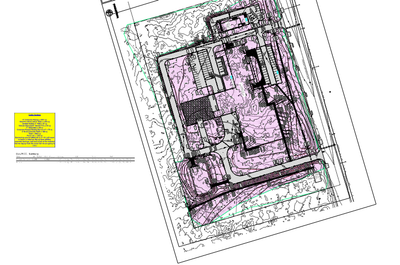

Topographic Surveys
Topo data collected via drone or rover. Fast turnaround, Texas-wide coverage.
Learn More
FAQ
Have more questions? Call now
Frequently Asked Questions About Site Staking and Layout
What types of stakes do you set?
We set property and boundary stakes, building corner stakes and offset hubs, grade stakes and blue tops, centerline and alignment stakes, control points and temporary benchmarks. If your project requires a stake type not listed here, contact us and we'll confirm.
How far in advance do I need to schedule a staking crew?
The more lead time you give us, the more flexibility we have on scheduling. Send your design files and mobilization date as early as you can. We schedule field crews around your mobilization so stakes are in the ground when your crew arrives, and most quotes are returned within one business day.
What happens if stakes get disturbed during construction?
If any stakes are disturbed before your work is complete, call us and we'll schedule a return visit to reset them. We also set offset hubs where construction activity is likely to disturb the primary layout points, which protects the layout through earthwork activity.
Do you work on residential projects?
Our staking and layout work is geared toward earthwork contractors and commercial and civil construction. If you have a residential project that needs construction staking, contact us with your design files and we'll confirm whether it's a fit.
What design files do you need to stake the site?
We work from your civil drawings, site plan and any existing survey data. Send us those design files along with your mobilization date, and if we spot any design information gaps that could affect layout accuracy, we'll flag them before scheduling the field crew.
Can you coordinate directly with the GC or engineer of record?
Yes. We can coordinate directly with your GC or engineer of record, flag design information gaps before staking, and provide a staking report documenting set points, elevations and field conditions if your GC asks for a layout record.
Get Your Stakes Set Before Your Crew Arrives
Send us your design files and tell us your mobilization date. We'll confirm crew availability, quote the layout scope and get your stakes in the ground on your schedule.
Field staking available across Houston, DFW, Rio Grande Valley and Corpus Christi. Most quotes returned within one business day.
